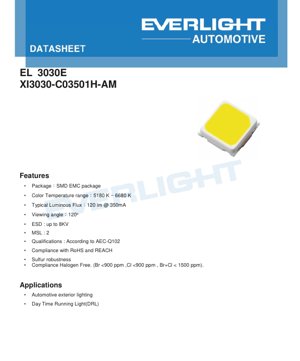

EL 3030E LED Datasheet - 3.0x3.0mm SMD EMC Package - 3.1V - 120lm - Cool White - Automotive Grade

1. Product Overview

The EL 3030E (Part Number: XI3030-C03501H-AM) is a high-performance, surface-mount LED designed specifically for demanding automotive lighting applications. It utilizes an EMC (Epoxy Molding Compound) package, which offers superior thermal management, reliability, and resistance to environmental stressors compared to standard plastic packages. The primary target market is automotive exterior lighting, with Daytime Running Lights (DRL) being a key application. Its core advantages include a high typical luminous flux of 120 lumens at a standard drive current of 350mA, a wide 120-degree viewing angle for excellent light distribution, and compliance with stringent automotive qualification standards.

2. In-Depth Technical Parameter Analysis

2.1 Photometric and Electrical Characteristics

The LED's performance is characterized under a standard test condition of 350mA forward current (I_F). The typical luminous flux is 120 lm, with a minimum of 100 lm and a maximum of 150 lm, accounting for a ±8% measurement tolerance. The dominant cool white color temperature ranges from 5180K to 6680K, with a typical value of 5850K. The forward voltage (V_F) typically measures 3.1V, ranging from 2.5V to 3.5V (representing 99% of production output). The wide 120° viewing angle ensures broad and uniform illumination patterns suitable for signaling functions.

2.2 Absolute Maximum Ratings and Thermal Management

Critical operational limits must be observed for reliable performance. The absolute maximum DC forward current is 500 mA. The device can handle surge currents up to 2300 mA for very short pulses (t≤10μs, duty cycle D=0.005). The maximum junction temperature (T_J) is 150°C, with an operating temperature range from -40°C to +125°C, suitable for harsh automotive environments. Thermal management is crucial; the thermal resistance from the junction to the solder point is specified as 13 K/W (real) and 10 K/W (electrical). Proper PCB thermal design is essential to maintain the junction temperature within safe limits and ensure long-term lumen maintenance.

2.3 Reliability and Compliance

This component is qualified according to the AEC-Q102 standard, which is the stress test qualification for discrete optoelectronic semiconductors in automotive applications. It features ESD protection up to 8 kV (Human Body Model), ensuring robustness against electrostatic discharge during handling. The device is compliant with RoHS and REACH regulations, is halogen-free (Br <900 ppm, Cl <900 ppm, Br+Cl < 1500 ppm), and offers sulfur robustness, making it resistant to corrosive atmospheres commonly found in automotive and industrial settings. Its Moisture Sensitivity Level (MSL) is 2.

3. Binning System Explanation

The production of LEDs involves natural variations. A binning system is used to sort components into groups with tightly controlled performance parameters.

3.1 Luminous Flux Binning

The provided datasheet details an extensive luminous flux binning structure. Bins are grouped by letters (E, F, J, K), with numerical sub-bins defining specific flux ranges. For the EL 3030E with a typical flux of 120 lm, the relevant bins are found in the J group (e.g., J2: 110-120 lm, J3: 120-130 lm). This allows designers to select components that meet precise brightness requirements for their application.

3.2 Color Binning

The chromaticity coordinates are binned according to the ECE (Economic Commission for Europe) standard structure, which is critical for automotive lighting where color consistency is mandated. The graph shows the target white region on the CIE 1931 chromaticity diagram, ensuring all units fall within an acceptable color space defined by specific x and y coordinate boundaries.

4. Performance Curve Analysis

4.1 IV Curve and Relative Luminous Flux

The forward current vs. forward voltage (I-V) curve shows the typical exponential relationship. The relative luminous flux vs. forward current graph demonstrates that light output increases with current but will eventually saturate and degrade at higher currents due to thermal effects. Operating at the recommended 350mA provides an optimal balance of efficiency and output.

4.2 Temperature Dependence

Two key graphs illustrate temperature effects: Relative Luminous Flux vs. Junction Temperature shows that light output decreases as the junction temperature rises. Effective heat sinking is vital to maintain brightness. Relative Forward Voltage vs. Junction Temperature shows a negative temperature coefficient, where V_F decreases linearly with increasing temperature. This property can sometimes be used for temperature monitoring.

4.3 Spectral and Spatial Distribution

The Wavelength Characteristics graph displays the relative spectral power distribution, peaking in the blue wavelength region and employing a phosphor to create white light. The Radiation Pattern (Typical Diagram Characteristics of Radiation) visually confirms the 120° viewing angle, showing the angular distribution of luminous intensity.

4.4 Current Derating and Pulse Handling

The Forward Current Derating Curve is critical for design. It plots the maximum permissible continuous forward current against the solder pad temperature. As the pad temperature increases, the allowable current decreases to prevent exceeding the 150°C junction limit. The Permissible Pulse Handling Capability chart defines the peak pulse current (I_Fp) that can be applied for a given pulse width (t_p) and duty cycle (D), useful for PWM dimming or transient conditions.

5. Mechanical, Assembly, and Packaging Information

5.1 Mechanical Dimensions and Polarity

The component is in a 3.0mm x 3.0mm SMD footprint. The mechanical drawing (referenced in the PDF contents) provides exact dimensions, including height, pad locations, and tolerances. The device has a clear polarity marking, typically a cathode indicator, which must be correctly aligned on the PCB according to the recommended soldering pad layout.

5.2 Soldering and Reflow Guidelines

A recommended soldering pad pattern is provided to ensure reliable solder joints and optimal thermal conduction to the PCB. The Reflow Soldering Profile must be followed precisely. The maximum soldering temperature is 260°C for 30 seconds. The profile includes preheat, soak, reflow, and cooling stages with specific time and temperature limits to prevent thermal shock and damage to the LED package or internal die.

5.3 Packaging for Production

The LEDs are supplied on tape and reel for automated pick-and-place assembly. The packaging information specifies the reel dimensions, tape width, pocket spacing, and orientation of components on the tape, which are essential for configuring assembly equipment.

6. Application Notes and Design Considerations

6.1 Primary Application: Automotive Exterior Lighting

The primary design application is Daytime Running Lights (DRL). For DRLs, high luminous efficacy, reliability under wide temperature swings, and long lifetime are paramount. The 120° viewing angle and high flux make it suitable for creating distinctive light signatures. Designers must implement appropriate current drivers (constant current recommended) and robust thermal management on the PCB to handle the ~1.1W power dissipation (3.1V * 350mA).

6.2 Circuit Design and Thermal Layout

Use a constant-current LED driver to ensure stable light output regardless of forward voltage variations. The PCB layout is critical: use the recommended pad design with adequate thermal vias connecting to an internal ground plane or a dedicated thermal layer to dissipate heat. The derating curve must be used to ensure the operating current is reduced if the ambient temperature or local heating is high.

6.3 Precautions for Use

Avoid applying reverse voltage, as the device is not designed for it. Follow ESD precautions during handling. Adhere strictly to the reflow profile. Do not operate below 50mA as indicated on the derating chart. Ensure the storage and operating environments are within the specified -40°C to +125°C range.

7. Comparative Advantages and Technical Differentiation

Compared to standard plastic SMD LEDs, the EMC package offers significantly better thermal performance, leading to higher maximum drive currents, better lumen maintenance, and longer lifetime—critical for automotive applications. The AEC-Q102 qualification, sulfur robustness, and high ESD rating provide a level of reliability and durability that standard commercial-grade LEDs do not offer. The specific binning structure aligned with automotive ECE standards ensures color and brightness consistency across production batches, which is essential for multi-LED arrays in vehicle lights where uniformity is visually critical.

8. Frequently Asked Questions (FAQ) Based on Technical Data

Q: What is the actual power consumption of this LED?

A: At the typical operating point of 350mA and 3.1V, the power is approximately 1.085 Watts (P = I_F * V_F).

Q: Can I drive this LED with a 12V automotive battery directly?

A: No. The LED requires a constant current source, typically around 350mA. A simple resistor from a 12V source would be highly inefficient and unstable with temperature. A dedicated LED driver or switching regulator is required.

Q: How do I interpret the flux bin code (e.g., J3) when ordering?

A: The bin code (like J3) specifies that the LED's luminous flux falls within a specific range (e.g., J3: 120-130 lm). This allows you to select for brightness consistency in your design.

Q: Why is the thermal resistance specification important?

A: Thermal resistance (R_thJS) defines how easily heat flows from the LED junction to the solder point. A lower value means better heat dissipation. Using this value with the power dissipation and ambient temperature, you can calculate the expected junction temperature to ensure it stays below 150°C.

9. Operational Principles and Technology Trends

9.1 Basic Operating Principle

This is a phosphor-converted white LED. The core is a semiconductor chip (typically InGaN) that emits blue light when forward biased (electroluminescence). This blue light strikes a yellow (or multi-color) phosphor layer deposited inside the package. The phosphor absorbs a portion of the blue light and re-emits it as a broader spectrum of yellow light. The mixture of the remaining blue light and the converted yellow light is perceived by the human eye as white light. The exact ratio of blue to yellow emission determines the correlated color temperature (CCT).

9.2 Industry Trends

The trend in automotive LED lighting is towards higher luminance density (more light from smaller sources), improved efficacy (lumens per watt), and enhanced reliability. EMC packages represent a significant step in this direction by allowing higher power densities than traditional plastics. Future developments may include chip-scale packages (CSP), advanced phosphors for better color rendering and stability, and integrated driver solutions. The focus remains on meeting increasingly stringent automotive reliability standards while reducing system cost and complexity.
