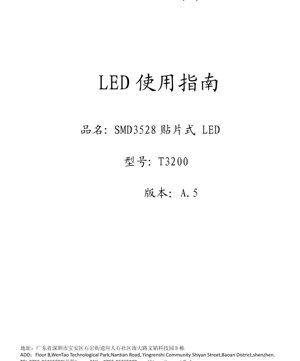

SMD3528 LED Handling Guide - Size 3.5x2.8mm - English Technical Document

1. Product Overview

The SMD3528 is a surface-mount LED component designed for high-density PCB applications. Its compact 3.5mm x 2.8mm footprint makes it suitable for backlighting, indicator lights, and general illumination where space is at a premium. The primary advantage of this component lies in its robust silicon encapsulation, which provides good optical performance. However, this same feature necessitates careful handling procedures to prevent damage to the delicate internal structure, including the wire bonds and LED die.

2. Handling Precautions for SMD3528 Products

Improper handling is a leading cause of failure for SMD3528 LEDs. The silicone encapsulant is relatively soft and susceptible to damage from physical pressure.

2.1 Manual Handling

Handling LEDs directly with fingers is strongly discouraged. Sweat and oils from skin contact can contaminate the silicone lens surface, leading to optical degradation and reduced light output. Furthermore, applying pressure with fingers can crush the silicone, potentially breaking the internal gold wire bonds or damaging the LED chip itself, resulting in immediate failure (dead LED).

2.2 Handling with Tweezers

Using standard tweezers to pick up the LED body is also problematic. The pointed tips can easily pierce or deform the soft silicone, causing the same internal damage as manual handling. Additionally, metal tweezers can scratch the lens surface, altering the light emission pattern and angle.

2.3 Vacuum Pick-and-Place Handling

Automated assembly using vacuum nozzles is the recommended method. However, it is critical that the vacuum nozzle tip has a diameter larger than the inner cavity of the LED package. A nozzle that is too small will press directly into the silicone, acting as a concentrated point of pressure that can sever wire bonds or crush the chip.

2.4 Post-Soldering Handling

After the reflow soldering process, PCBs containing SMD3528 LEDs must be handled with care. Stacking boards directly on top of each other can apply pressure to the LED domes. This pressure can cause mechanical stress, leading to latent defects or immediate failure. A minimum vertical clearance of 2cm should be maintained above the LED components when stacking assemblies. Bubble wrap should not be placed directly on the LEDs, as the pressure from the bubbles can also cause damage.

3. Moisture Sensitivity, Storage, and Baking

The SMD3528 LED is classified as a moisture-sensitive device (MSD). Absorbed moisture can vaporize rapidly during the high-temperature reflow soldering process, causing internal delamination, cracking, or "popcorning," which leads to failure.

3.1 Moisture Sensitivity Level (MSL)

This product complies with the IPC/JEDEC J-STD-020C standard for moisture/reflow sensitivity classification for plastic integrated circuits. Users must refer to the specific MSL rating provided on the product packaging or datasheet.

3.2 Storage Conditions

• Unopened Packaging: Store in an environment with temperature between 5\u00b0C and 30\u00b0C and relative humidity below 85%.
• Opened Packaging: Components must be stored in a dry environment. The recommended condition is temperature between 5\u00b0C and 30\u00b0C with relative humidity below 60%. For optimal protection after opening, store components in a sealed container with desiccant or in a nitrogen-purged dry cabinet.

3.3 Floor Life

Once the original moisture barrier bag is opened, the components should be used within 12 hours if the storage environment is not controlled (e.g., not in a dry cabinet). The humidity indicator card inside the bag must be checked immediately upon opening to verify the internal humidity has not exceeded safe levels.

3.4 Baking Requirements and Procedure

Baking is required to remove absorbed moisture if:

1. The components have been removed from their original vacuum-sealed packaging and exposed to ambient air for longer than the specified floor life.
2. The humidity indicator card shows the humidity level has been exceeded.

Components that have already undergone reflow soldering do not require baking.

Baking Procedure:

1. Components can be baked on their original reel.
2. Bake at a temperature of 60\u00b0C (\u00b15\u00b0C) for 24 hours.
3. Do not exceed 60\u00b0C, as higher temperatures may damage the LED packaging or materials.
4. After baking, components must be reflow soldered within one hour or immediately placed back into a dry storage environment (RH < 20%).

4. Soldering and Cleaning Guidelines

4.1 Reflow Soldering

Allow the LED to cool down to room temperature naturally after the reflow process before any subsequent handling or cleaning. Inspect the solder joints for consistency. The solder should show a complete reflow profile with a smooth, shiny appearance and minimal voids when viewed from the side of the PCB.

4.2 Post-Soldering Cleaning

Cleaning the PCB after soldering is recommended to remove flux residues.

• Recommended: Use water-soluble flux and clean with deionized water or a specified aqueous cleaner, followed by drying. Isopropyl alcohol (IPA) can also be used if necessary.
• Not Recommended / Prohibited:
  • Do not use ultrasonic cleaning. The high-frequency vibrations can cause micro-cracks in the LED chip or wire bonds.
  • Do not clean assembled PCBs with plain water, as it is difficult to dry completely and can lead to oxidation of the component leads.
  • Avoid strong organic solvents such as acetone, toluene, or lacquer thinner. These chemicals can attack and degrade the silicone lens material, causing clouding, cracking, or dissolution.
  • Never use unspecified chemical cleaners.

If water cleaning is unavoidable, the entire PCB assembly must be thoroughly dried, potentially requiring a low-temperature bake (e.g., 60\u00b0C) to remove all moisture before further processing or use.

5. ESD (Electrostatic Discharge) Protection

LEDs are semiconductor devices and are highly susceptible to damage from electrostatic discharge. White, green, blue, and purple LEDs are particularly sensitive due to their semiconductor material composition.

5.1 Sources of ESD

ESD can be generated through various means:

• Friction: Contact and separation of dissimilar materials (e.g., plastic trays, clothing, packaging).
• Induction: A charged object brought near a conductive surface can induce a charge.

5.2 Protection Measures

A comprehensive ESD control program is essential in the handling area:

• Use grounded workstations with conductive mats.
• All personnel must wear properly grounded wrist straps.
• Use conductive containers, trays, and bags for storage and transport of components.
• Maintain a controlled environment with humidity above 40% RH if possible, as higher humidity reduces static charge buildup.
• Handle components only at designated ESD-safe work areas.

6. Thermal Management Considerations

While the provided document excerpt does not detail specific thermal resistance values, effective thermal management is critical for LED performance and longevity. The SMD3528 package dissipates heat primarily through its solder pads into the PCB.

6.1 PCB Design for Heat Sinking

To maximize lifespan and maintain stable light output:\p>

• Use a PCB with adequate thermal conductivity. Metal-core PCBs (MCPCBs) or boards with thick copper planes are highly recommended for high-power or high-density applications.
• Design the PCB footprint with thermal relief pads connected to large copper areas or dedicated thermal vias that transfer heat to inner layers or a backside heat sink.
• Ensure the solder joint integrity is high, as the solder is the primary thermal interface between the LED and the board.

6.2 Impact of Temperature

High junction temperature leads to:

• Accelerated lumen depreciation (reduced light output over time).
• Color shift, especially for white LEDs.
• Reduced operational lifetime.
• Increased forward voltage.

Designers should refer to the product's specific datasheet for derating curves and maximum junction temperature ratings.

7. Reflow Soldering Profile Characteristics for 3528 Series

A standard lead-free reflow profile is typically suitable. Key parameters to control include:

• Preheat/Ramp: A gradual ramp rate (typically 1-3\u00b0C/second) to minimize thermal shock.
• Soak Zone: Allows the entire assembly and components to reach a uniform temperature and activates the flux.
• Reflow Zone: The peak temperature must be high enough to ensure proper solder melting but must not exceed the maximum temperature tolerance of the LED package (consult datasheet, typically around 260\u00b0C for a few seconds).
• Cooling: A controlled cool-down phase helps form reliable solder joints.

It is crucial to profile the oven with actual PCBs and components to ensure the LEDs do not experience temperatures beyond their specification.

8. Application Notes and Design Considerations

8.1 Typical Applications

The SMD3528 is widely used in:

• LCD display backlighting units (BLUs).
• Architectural accent lighting.
• Automotive interior lighting.
• Consumer electronics status indicators.
• Signage and decorative lighting.

8.2 Circuit Design

Always drive LEDs with a constant current source, not a constant voltage. A current-limiting resistor is mandatory when using a voltage source. The forward current (If) must be strictly adhered to as specified in the datasheet to prevent overheating and rapid degradation.

8.3 Optical Design

The silicone lens provides a typical viewing angle. For specific beam patterns, secondary optics (reflectors, diffusers, or external lenses) may be required. Avoid mechanical contact between secondary optics and the LED dome to prevent stress.

9. Failure Analysis and Troubleshooting

Common failure modes and their likely root causes include:

• Dead LED (No Light): Often caused by ESD damage, broken wire bonds from mechanical stress (handling, stacking), or chip fracture.
• Diminished Light Output: Can result from silicone lens contamination, excessive junction temperature, or solder joint failure leading to poor heat transfer.
• Intermittent Operation: May indicate a cracked solder joint, a damaged wire bond making intermittent contact, or ESD-induced latent damage.
• Color Shift: Primarily caused by prolonged operation at high temperatures, driving current beyond specification, or degradation of the phosphor (in white LEDs).

Adherence to the handling, storage, soldering, and design guidelines in this document is the most effective preventative measure.
