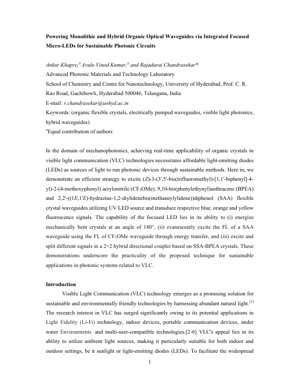

Analysis: Focused Micro-LED Powered Organic Waveguides for Sustainable Photonic Circuits

1. Introduction & Overview

This analysis delves into a research paper proposing a novel strategy for powering photonic circuits using focused micro-Light Emitting Diodes (micro-LEDs). The core premise is to replace conventional, expensive, and high-power laser sources with cost-effective, commercially available UV LEDs to excite flexible organic crystal waveguides. This shift is positioned as a critical enabler for sustainable Visible Light Communication (VLC) and Li-Fi technologies, aiming to reduce the energy footprint and material cost of integrated photonic systems.

The work demonstrates the excitation of three distinct organic crystals—CF₃OMe (blue), BPEA (orange), and SAA (yellow)—using a single focused UV LED source. Key demonstrations include powering bent waveguides, facilitating evanescent wave energy transfer between crystals, and operating a 2x2 hybrid directional coupler to split optical signals.

2. Core Technology & Methodology

2.1. Materials: Flexible Organic Crystals

The research utilizes three mechanically flexible organic molecular crystals as the active waveguide medium:

• CF₃OMe: Emits blue fluorescence upon UV excitation.
• BPEA: Emits orange fluorescence.
• SAA: Emits yellow fluorescence.

2.2. Light Source: Focused UV Micro-LED Setup

A critical innovation is the substitution of lasers with a commercial UV LED. To achieve the necessary spatial precision for coupling light into micron-scale waveguides, the team developed a simple yet effective focusing apparatus:

1. A glass slide substrate.
2. A thin aluminum foil attached to the back, inscribed with a 40 µm diameter aperture.
3. The UV LED is aligned behind this aperture, creating a de facto focused light spot that illuminates the crystal waveguides placed on the opposite side of the slide.

2.3. Device Fabrication & Integration

Crystals are grown or placed onto the glass substrate. The focused LED spot is used to pump specific regions of a single crystal (monolithic waveguide) or the interaction zone between multiple crystals (hybrid circuit). The emitted visible light is then guided via total internal reflection along the crystal's length, functioning as an active optical waveguide.

3. Experimental Results & Demonstrations

3.1. Monolithic Waveguide Excitation

The focused UV LED successfully pumped individual CF₃OMe, BPEA, and SAA crystal waveguides, producing guided blue, orange, and yellow light emission from their ends, respectively. Crucially, this excitation worked even when the crystals were mechanically bent at a 180° angle, proving the robustness of both the crystal and the coupling scheme for flexible photonics.

3.2. Evanescent Wave Energy Transfer

A more advanced demonstration involved two waveguides in close proximity. The blue fluorescence from a CF₃OMe waveguide, itself pumped by the UV LED, was used to evanescently excite the yellow fluorescence in a nearby SAA waveguide. This is a form of Förster Resonance Energy Transfer (FRET), demonstrating the potential for creating integrated photonic logic where light from one waveguide controls another without direct electrical connection.

3.3. 2x2 Hybrid Directional Coupler

The pinnacle demonstration was a hybrid directional coupler constructed from SAA and BPEA crystals. The focused UV LED spot was positioned at the input of this coupled system. The result was the splitting of the input signal into two output channels, each carrying a mix or distinct separation of the yellow (SAA) and orange (BPEA) signals. This mimics a fundamental component (a beamsplitter/coupler) in integrated photonic circuits, essential for signal routing and processing.

Chart/Figure Description (Implied): A schematic would show a UV LED focused on a junction where a yellow SAA crystal and an orange BPEA crystal are placed in parallel proximity. Two output crystal "arms" extend from this junction, each showing a combined yellow-orange glow, visually representing signal splitting and color mixing.

4. Technical Analysis & Framework

Industry Analyst Perspective

4.1. Core Insight & Logical Flow

The paper's fundamental insight is not about creating a superior waveguide material, but about democratizing the power source for existing ones. The logical flow is compelling: VLC needs low-cost, sustainable devices (Problem). Organic crystals are great waveguides but typically need expensive lasers (Limitation). Commercial LEDs are cheap and efficient but lack spatial coherence (Challenge). Solution: Use simple spatial filtering (a pinhole) to create a "focused" LED spot good enough to couple into flexible crystals. The subsequent demonstrations (bending, energy transfer, coupler) are logical proofs-of-concept that this simple source can enable complex photonic functions. It's a classic case of system-level innovation trumping component-level perfection.

4.2. Strengths & Critical Flaws

Strengths:

• Cost & Sustainability Proposition: This is the killer feature. Replacing laser diodes with LEDs can reduce BOM cost by an order of magnitude and lower power consumption, directly addressing VLC's green-tech mandate.
• Elegant Simplicity: The pinhole focusing method is brilliantly low-tech and reproducible, avoiding complex micro-optics.
• Material Compatibility: Successfully leverages the prior decade's advances in flexible organic crystals, providing an immediate application.

• Coupling Efficiency & Loss: The paper is silent on the numerical coupling efficiency from the LED into the waveguide. A 40µm spot is still huge compared to single-mode waveguide dimensions (often sub-µm). Most of the LED's power is likely wasted, raising questions about the true "low-power" advantage at scale. Research from the IEEE Journal of Selected Topics in Quantum Electronics highlights that coupling efficiency is the primary bottleneck in LED-based integrated photonics.
• Speed & Bandwidth: There is zero discussion of modulation speed. VLC requires MHz to GHz modulation. Organic crystals can have long exciton lifetimes, limiting modulation bandwidth. Can this system support real data transmission? This is a glaring omission.
• System Integration & Scalability: The demo is on a glass slide with manually aligned crystals. The path to a mass-manufacturable, aligned, and packaged chip is completely unexplored. Contrast this with the mature foundry processes for silicon photonics, as documented by institutes like IMEC.

4.3. Actionable Insights & Strategic Implications

For researchers and companies:

1. Focus on the Interface: The next R&D sprint shouldn't be on new crystals, but on designing waveguide geometries (e.g., tapers, gratings) specifically optimized for low-coherence LED coupling. Borrow concepts from silicon photonics packaging.
2. Benchmark Against the Incumbent: Run head-to-head tests: a laser-driven vs. LED-driven version of the same circuit, measuring power-in/power-out, eye diagrams for data, and bit-error-rate. Without this data, the claim remains speculative.
3. Target the Right Market: Given the likely low speed, pivot initial applications away from high-speed Li-Fi and towards low-data-rate sensor networks, biomedical imaging probes, or wearable photonic health monitors where cost and flexibility are paramount, and bandwidth is secondary.
4. Partner with LED Manufacturers: Collaborate with micro-LED makers (e.g., those from the display industry) to co-develop LEDs with built-in micro-lenses or structures for better native focus, moving beyond the pinhole crutch.

5. Mathematical Model & Technical Details

The core light guidance relies on Total Internal Reflection (TIR). For a waveguide with core refractive index $n_{core}$ (organic crystal) and cladding index $n_{clad}$ (air, $n_{air} \approx 1$), the critical angle $\theta_c$ is: $$\theta_c = \sin^{-1}\left(\frac{n_{clad}}{n_{core}}\right)$$ Light incident on the core-cladding interface at angles greater than $\theta_c$ is totally reflected, confining light within the crystal.

The evanescent wave coupling strength between two parallel waveguides (as in the energy transfer and directional coupler experiments) is governed by their separation distance $d$ and the evanescent field decay constant $\gamma$. The power transfer over a coupling length $L$ can be modeled as: $$P_{transfer} \propto \exp(-2\gamma d) \cdot \sin^2(\kappa L)$$ where $\kappa$ is the coupling coefficient dependent on the overlap of the waveguide modes. This principle allows for controlled splitting of optical power, forming the basis of the directional coupler.

6. Analysis Framework: A Non-Code Case Study

Case: Evaluating a New Photonic Power Source
When assessing any new technology for powering photonic circuits (like this focused LED), apply this framework:

1. Source Metrics: Quantify optical power output, spectral width ($\Delta\lambda$), spatial coherence (beam quality), and electrical-to-optical conversion efficiency.
2. Coupling Efficiency ($\eta_c$): Model and measure $\eta_c = P_{waveguide} / P_{source}$. This is the first-order determinant of system efficiency. For an LED with a large area $A_{LED}$ and a waveguide mode area $A_{mode}$, the upper bound is roughly $\eta_c \sim A_{mode}/A_{LED}$ without special optics.
3. System-Level Impact: Does the new source enable a new application (e.g., flexible, disposable sensors) due to cost/size? Or does it improve an existing metric (e.g., power consumption) in a known application? Map the trade-offs.
4. Technology Readiness Level (TRL) Pathway: Identify the key hurdles to advance from TRL 3-4 (lab proof-of-concept) to TRL 6-7 (prototype in relevant environment). For this work, the hurdles are coupling efficiency quantification and modulation speed demonstration.

7. Future Applications & Development Roadmap

Short-Term (1-3 years):

• On-Skin Biomedical Sensors: Flexible, LED-powered waveguides could be integrated into patches for continuous, optical monitoring of biomarkers or tissue oxygenation, powered by a tiny battery.
• Smart Packaging & Authentication: Inexpensive photonic circuits embedded in products that emit a specific light pattern when activated by ambient light or a simple LED scanner.

• Visible Light Sensor Networks for IoT: Low-data-rate communication between room lights (acting as transmitters with LEDs) and distributed sensors with organic waveguide receivers.
• Hybrid Silicon-Organic Chips: Using the focused LED technique to pump organic waveguide sections integrated on a silicon photonics chip for on-chip light generation or wavelength conversion, a concept explored by research groups at MIT and Stanford.

• Develop organic crystals with faster radiative decay rates for higher modulation bandwidth.
• Co-integrate micro-LEDs and waveguides at the chip scale using micro-transfer printing or monolithic growth techniques.
• Establish standardized characterization protocols for LED-driven photonic components (efficiency, bandwidth, reliability).

8. References

1. Haas, H. "LiFi: Conceptions, Misconceptions and Opportunities." 2016 IEEE Photonics Conference (IPC). 2016. (Seminal Li-Fi paper).
2. IMEC. "Silicon Photonics Technology." https://www.imec-int.com/en/expertise/silicon-photonics (Reference for mature photonic integration platforms).
3. IEEE Journal of Selected Topics in Quantum Electronics. "Special Issue on LED-Based Photonics." Vol. 27, No. 1. 2021. (For technical challenges in LED coupling).
4. Zhu, J., et al. "Unidirectional Growth of Ultrathin Organic Single Crystals for High-Performance Flexible Photonics." Advanced Materials. 2020. (Context on advanced organic crystal growth).
5. Ismail, Y., et al. "Modulation Bandwidth of Organic Light-Emitting Materials for Visible Light Communications." Journal of Physics D: Applied Physics. 2022. (For material speed limitations).
