Advanced Constellation Design for Multi-Color Visible Light Communication Systems

1. Introduction & Overview

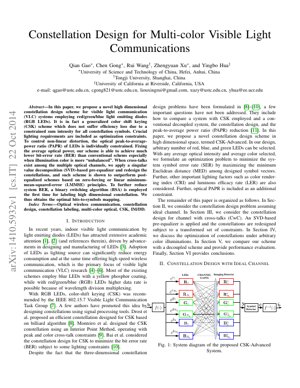

This paper, "Constellation Design for Multi-color Visible Light Communications," presents a significant advancement in the field of Visible Light Communication (VLC). The authors propose CSK-Advanced, a novel high-dimensional constellation design scheme tailored for systems employing Red/Green/Blue Light Emitting Diodes (RGB LEDs). The work addresses critical limitations of conventional Color Shift Keying (CSK), such as efficiency loss from constrained sum intensity, while rigorously incorporating essential lighting requirements like Color Rendering Index (CRI) and Luminous Efficacy Rate (LER) as optimization constraints.

2. Core Insight: The CSK-Advanced Paradigm

The paper's fundamental breakthrough is moving beyond treating RGB channels as merely decoupled carriers. CSK-Advanced conceptualizes the signal space as a unified, high-dimensional constellation where each symbol is a vector defining precise intensities for red, green, and blue LEDs simultaneously. This holistic approach allows for joint optimization of communication performance (Bit Error Rate - BER) and illumination quality under real-world constraints like individual LED Peak-to-Average Power Ratio (PAPR). It's a shift from a component-level to a system-level design philosophy, reminiscent of the paradigm shift brought by end-to-end optimization in deep learning systems, as seen in works like the original CycleGAN paper which jointly learned mapping functions between image domains.

3. Logical Flow: From Problem to Solution

The paper constructs its argument with a clear, three-stage logical progression.

3.1. System Model & Ideal Channel Design

The foundation is laid with a system of $N_r$, $N_g$, $N_b$ LEDs. The core optimization problem is formulated to minimize Symbol Error Rate (SER) by maximizing the Minimum Euclidean Distance (MED) between constellation points in the 3D $(I_r, I_g, I_b)$ intensity space. Crucially, constraints are not an afterthought but are integrated into the problem definition: fixed average optical power, target chromaticity coordinates for illumination, and individual optical PAPR limits to control non-linear distortion in each LED color channel.

3.2. Handling Channel Cross-Talk (CwC)

The model is then extended to the practical scenario of cross-talk among color channels, modeled by a channel matrix $\mathbf{H}$. Instead of applying equalization at the receiver (post-equalization), which can amplify noise, the authors propose a Singular Value Decomposition (SVD)-based pre-equalizer. The constellation is redesigned in the transformed, decoupled channel space. This proactive approach is shown to outperform reactive post-equalized schemes like Zero-Forcing (ZF) or Linear Minimum Mean Squared Error (LMMSE), especially in noisy conditions.

3.3. Constellation Labeling with BSA

The final step addresses the mapping of bit sequences to constellation symbols. The authors employ a Binary Switching Algorithm (BSA)—reportedly for the first time in high-dimensional VLC constellation labeling—to find the optimal Gray-like mapping that minimizes BER for a given constellation geometry, closing the loop on end-to-end performance optimization.

4. Strengths & Flaws: A Critical Assessment

Strengths:

• Holistic Constraint Integration: The simultaneous handling of communication (MED, BER), illumination (CRI, LER, color point), and hardware (PAPR) constraints is exemplary and industry-relevant.
• Proactive Cross-Talk Mitigation: The SVD-based pre-equalization is a clever and effective solution to a pervasive practical problem.
• Algorithmic Novelty: Applying BSA for labeling in this context is a smart cross-pollination from digital communication theory.

Flaws & Omissions:

• Computational Complexity: The paper is silent on the computational cost of solving the constrained MED optimization problem for large constellation sizes, a potential barrier to real-time adaptation.
• Dynamic Environment Assumption: The model assumes a static channel. Real indoor VLC channels experience dynamic blockage and shadowing; the scheme's robustness to such variations is untested.
• Hardware Imperfections: While PAPR is considered, other non-idealities like LED nonlinearity (beyond clipping) and thermal effects are not modeled, potentially overstating performance gains.

5. Actionable Insights & Future Directions

For researchers and engineers, this paper provides a clear blueprint:

1. Adopt a Joint Optimization Mindset: Treat VLC system design as a co-optimization of comms and illumination, not two separate problems.
2. Pre-equalization Over Post-equalization: In cross-talk scenarios, invest in pre-distortion/pre-equalization design for more reliable performance.
3. Explore Adaptive Constellations: The logical next step is to develop low-complexity algorithms that can adapt the constellation in real-time based on changing illumination needs or channel conditions, perhaps using machine learning for rapid optimization.
4. Standardization Push: Work like this should inform future iterations of VLC standards (beyond IEEE 802.15.7) to include more flexible and advanced constellation definitions.

6. Technical Deep Dive

6.1. Mathematical Formulation

The core optimization for the ideal channel can be summarized as: $$\begin{aligned} \max_{\{\mathbf{s}_i\}} & \quad d_{\min} = \min_{i \neq j} \|\mathbf{s}_i - \mathbf{s}_j\| \\ \text{s.t.} & \quad \frac{1}{M}\sum_{i=1}^{M} \mathbf{s}_i = \mathbf{P}_{\text{avg}} \quad \text{(Avg. Power)} \\ & \quad \mathbf{C}(\mathbf{s}_i) = \mathbf{c}_{\text{target}} \quad \text{(Color Point)} \\ & \quad \max(\mathbf{s}_i^{(k)}) / \text{avg}(\mathbf{s}_i^{(k)}) \leq \Gamma_{\text{PAPR}} \quad \forall k \in \{r,g,b\} \end{aligned}$$ where $\mathbf{s}_i = [I_r, I_g, I_b]_i^T$ is a constellation point, $M$ is the constellation size, and $\mathbf{C}(\cdot)$ computes the chromaticity coordinates.

6.2. Experimental Results & Performance

The paper presents numerical results demonstrating CSK-Advanced's superiority:

• BER vs. SNR: Under unbalanced illumination colors (e.g., dominant red), CSK-Advanced achieves significantly lower BER compared to conventional decoupled PAM schemes and basic CSK, especially at moderate to high SNR.
• Cross-Talk Resilience: The SVD-based pre-equalized design shows a clear BER performance gap over ZF and LMMSE post-equalization, particularly as cross-talk interference increases. This is visually represented in a BER vs. cross-talk coefficient plot.
• Constellation Diagrams: The paper likely includes 3D scatter plots showing the geometrically optimized constellation points for CSK-Advanced, contrasting them with the more regular but less optimal grids of conventional schemes. These diagrams visually demonstrate the larger MED achieved through optimization.

7. Analysis Framework & Case Example

Case: Designing a VLC system for a museum gallery.

1. Requirements: Illuminate a painting with specific, regulated color temperature (e.g., 3000K warm white) to prevent damage, while providing hidden audio guide data stream.
2. Applying CSK-Advanced Framework:
   • Constraint Definition: Set $\mathbf{c}_{\text{target}}$ to the required chromaticity. Define strict PAPR limits to ensure LED longevity. Set CRI constraint high for accurate color rendering.
   • Channel Modeling: Measure/estimate the 3x3 cross-talk matrix $\mathbf{H}$ for the specific RGB LED fixtures and photodetectors used.
   • Optimization: Run the MED maximization with the above constraints and pre-equalize using SVD based on $\mathbf{H}$.
   • Labeling: Apply BSA to the resulting 3D constellation to map audio data bits for minimal playback errors.
3. Outcome: A lighting system that perfectly meets conservation-grade illumination standards while reliably transmitting data, a feat difficult with decoupled designs.

8. Application Outlook & Future Research

Immediate Applications: High-speed, secure data links in lighting-sensitive environments: hospitals (MRI rooms), aircraft cabins, industrial settings with EMI restrictions. Future Research Directions:

• Machine Learning for Optimization: Employ deep reinforcement learning or gradient-based learning (inspired by frameworks like PyTorch/TensorFlow) to solve the complex constraint optimization faster or adaptively.
• Integration with LiFi Networks: How does CSK-Advanced perform in multi-user, multi-cell LiFi networks? Research into resource allocation and interference management is needed.
• Beyond RGB: Extend the framework to multi-spectral LEDs (e.g., RGB + White, or Cyan) for even higher dimensionality and data rates.
• Silicon Photonics Integration: Explore co-design with emerging micro-LED and silicon photonics platforms for ultra-compact, high-speed transceivers, as reported by research consortia like the American Institute for Manufacturing Integrated Photonics (AIM Photonics).

9. References

1. Gao, Q., Gong, C., Wang, R., Xu, Z., & Hua, Y. (2014). Constellation Design for Multi-color Visible Light Communications. arXiv preprint arXiv:1410.5932.
2. IEEE Standard for Local and Metropolitan Area Networks–Part 15.7: Short-Range Wireless Optical Communication Using Visible Light. (2011). IEEE Std 802.15.7-2011.
3. Zhu, J., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. Proceedings of the IEEE International Conference on Computer Vision (ICCV). (CycleGAN reference for joint optimization analogy).
4. Kahn, J. M., & Barry, J. R. (1997). Wireless infrared communications. Proceedings of the IEEE, 85(2), 265-298.
5. AIM Photonics. (n.d.). Integrated Photonics Research. Retrieved from https://www.aimphotonics.com/ (Example of advanced hardware platform).
6. Drost, R. J., & Sadler, B. M. (2014). Constellation design for color-shift keying using billiards algorithms. IEEE GLOBECOM Workshops.
