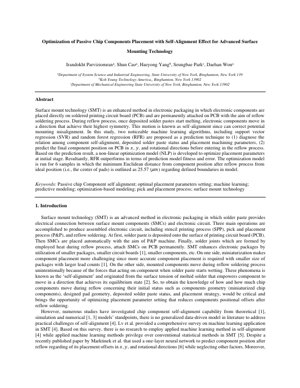

Optimization of Passive Chip Components Placement with Self-Alignment Effect using Machine Learning

1. Introduction

Surface Mount Technology (SMT) is a cornerstone of modern electronics manufacturing, enabling the assembly of smaller, denser circuits. A critical yet complex phenomenon within SMT is self-alignment, where surface tension forces from molten solder paste during reflow cause components to move towards a position of equilibrium, potentially correcting initial placement misalignment. While beneficial, this motion is difficult to predict and control, especially with miniaturized components where tolerances are extremely tight. Traditional approaches rely on theoretical or simulation models, which often lack generalizability to real-world production variations. This study addresses this gap by proposing a data-driven, machine learning (ML) approach to model the self-alignment effect and subsequently optimize the initial placement parameters, aiming to minimize final positional error after reflow.

2. Methodology

The research follows a two-stage pipeline: first, predicting the final component position; second, using that prediction to optimize initial placement.

2.1. Problem Definition & Data Collection

The goal is to predict the final post-reflow position ($x_f$, $y_f$, $\theta_f$) of a passive chip component based on initial conditions. Key input features include:

Initial Placement Parameters: Pick-and-place machine coordinates ($x_i$, $y_i$, $\theta_i$).
Solder Paste Status: Volume, height, and area of deposited paste.
Component & Pad Geometry: Dimensions influencing surface tension forces.

Data is collected from controlled SMT assembly lines, measuring the stated parameters before reflow and the final position after reflow.

2.2. Machine Learning Models

Two regression algorithms are employed for prediction:

Support Vector Regression (SVR): Effective in high-dimensional spaces, seeking a function with a maximum margin of error tolerance ($\epsilon$).
Random Forest Regression (RFR): An ensemble method that builds multiple decision trees and averages their predictions, robust against overfitting.

The models are trained to learn the complex, non-linear relationship $f$: $\mathbf{P}_{final} = f(\mathbf{P}_{initial}, \mathbf{S}_{paste}, \mathbf{G})$.

2.3. Optimization Framework

Using the trained prediction model (particularly the superior RFR), a Non-Linear Programming (NLP) optimization model is formulated. The objective is to find the optimal initial placement parameters $\mathbf{P}_{initial}^*$ that minimize the expected Euclidean distance between the predicted final position and the ideal pad center.

Objective Function: $\min \, \mathbb{E}[\, \| \mathbf{P}_{final}(\mathbf{P}_{initial}) - \mathbf{P}_{ideal} \| \,]$

Subject to: Machine placement boundaries and physical feasibility constraints.

3. Results & Analysis

3.1. Model Performance Comparison

The Random Forest Regression model significantly outperformed SVR in this application.

Model Performance Summary

RFR R² Score: ~0.92 (Indicates excellent model fit).
SVR R² Score: ~0.78.
Key Advantage of RFR: Superior handling of non-linear interactions and feature importance ranking (e.g., solder paste volume was identified as a top predictor).

3.2. Optimization Outcomes

The NLP optimizer, using the RFR model as its core predictor, was run for six test component samples. The results demonstrated the practical viability of the approach.

Key Result: The optimized placement parameters led to a minimum Euclidean distance of post-reflow position from the ideal pad center of 25.57 µm for the best-case sample, well within the boundaries defined by modern ultra-fine-pitch component requirements.

4. Core Analyst Insight

Core Insight: This paper isn't just about predicting solder wiggles; it's a pragmatic, closed-loop inversion of a manufacturing nuisance. The authors reframe the chaotic, physics-driven self-alignment effect—traditionally a source of final-stage variability—into a predictable compensatory mechanism. Instead of fighting the physics, they weaponize it through ML to pre-distort placement, turning a problem into a precision tool. This is a classic example of the "digital twin" philosophy applied at the micron scale.

Logical Flow & Its Brilliance: The logic is elegantly sequential but non-trivial: 1) Acknowledge Chaos: Self-alignment exists and is complex. 2) Model Chaos: Use robust, non-parametric ML (RFR) to learn its patterns from data, sidestepping intractable first-principle equations. 3) Invert the Model: Use the predictive model as the heart of an optimizer to run a "reverse simulation," asking: "What initial 'wrong' position leads to the final 'right' position?" This flow from observation to predictive understanding to prescriptive action is the hallmark of advanced process control.

Strengths & Glaring Flaws: The strength is undeniable: demonstrable sub-30µm results using accessible ML models (RFR/SVR) that are easier to deploy in an industrial setting than a deep neural net. The choice of RFR over SVR is well-justified by the results. However, the flaw is in the scope. The study tests only six samples. This is a proof-of-concept, not a validation for high-mix, high-volume production. It ignores the temporal drift of the pick-and-place machine, solder paste slump, and pad contamination—variables that would wreck a model trained on pristine lab data. As noted in the SEMI standards for advanced packaging, true robustness requires in-situ, continuous learning.

Actionable Insights for Industry: For process engineers, the immediate takeaway is to start instrumenting their lines to collect the triad of data this paper uses: pre-reflow placement coordinates, solder paste inspection (SPI) metrics, and post-reflow measurement. Even before full optimization, correlating this data can reveal critical process windows. For R&D, the next step is clear: integrate this with real-time control. The optimizer's output shouldn't be a static report; it should be a dynamic setpoint fed back to the placement machine, creating an adaptive loop. As the industry moves towards heterogeneous integration and chiplets (as outlined by IEEE's roadmap), this level of precision, predictability, and closed-loop control transitions from a "nice-to-have" to a fundamental yield requirement.

5. Technical Deep Dive

The self-alignment driving force originates from the minimization of the total surface energy of the molten solder. The restoring torque $\tau$ that corrects rotational misalignment $\Delta\theta$ can be approximated for a rectangular chip component as:

$\tau \approx - \gamma L \, \Delta\theta$

where $\gamma$ is the surface tension of the solder and $L$ is a characteristic length related to the pad. The ML models, especially RFR, learn a highly non-linear mapping that encapsulates this physics and more, including the effects of paste volume $V$ imbalance, which is a primary driver of tombstoning defects. The RFR algorithm builds $N$ trees, with the final prediction for a target variable $\hat{y}$ being:

$\hat{y} = \frac{1}{N} \sum_{i=1}^{N} T_i(\mathbf{x})$

where $T_i(\mathbf{x})$ is the prediction of the $i$-th tree for input feature vector $\mathbf{x}$. This ensemble approach effectively averages out noise and captures complex interactions.

6. Experimental Results & Charts

The paper's key results can be visualized through two primary charts:

Chart 1: Model Prediction vs. Actual Post-Reflow Position (Scatter Plot): This chart would show a much tighter clustering of points along the line y=x for the RFR model compared to the SVR model, visually demonstrating RFR's superior predictive accuracy for $x$, $y$, and $\theta$ displacements.
Chart 2: Feature Importance Bar Chart from Random Forest: This chart would rank input features by their importance in predicting final position. Based on the paper's context, we would expect Solder Paste Volume (per pad) and Initial Placement Offset in X/Y to be the top contributors, followed by paste height and area. This insight is critical for process control, indicating which parameters to monitor most closely.
Chart 3: Optimization Convergence Plot: For the six test samples, a plot showing the reduction in the predicted Euclidean error (µm) as the NLP optimizer iterates, converging to the minimal value (e.g., 25.57 µm).

7. Analysis Framework: A Non-Code Case

Consider a process engineer tasked with reducing tombstoning defects for a 0201 (0.02" x 0.01") resistor. Following this paper's framework:

Data Foundation: For the next 100 boards, record for each 0201 component: a) SPI data for left/right pad volume ($V_L$, $V_R$), b) Placement machine coordinates ($x_i$, $y_i$), c) Post-reflow automated optical inspection (AOI) result: good joint, tombstone (yes/no), and measured final shift.
Correlation Analysis: Calculate the correlation between the paste volume imbalance $\Delta V = |V_L - V_R|$ and the occurrence of tombstoning. You will likely find a strong positive correlation, confirming a key driver.
Simple Predictive Rule: Even without complex ML, you can establish a process control rule: "If $\Delta V > X$ picoliters for an 0201, flag the board for paste inspection or rework." The value of $X$ is derived from your data.
Prescriptive Action: The deeper insight from the paper's method would be: "For a measured $\Delta V$, what compensatory placement offset $\Delta x_i$ can we apply to counteract the resulting pull during reflow?" This moves from detection to prevention.

8. Future Applications & Directions

The methodology pioneered here has broad applicability beyond standard SMT:

Advanced Packaging & Chiplet Integration: For flip-chip and micro-bump assembly, controlling the self-alignment of chiplets is critical for yield. An ML-optimized approach could manage the co-planarity and final placement of multiple heterogeneous dies.
Integration with Industry 4.0 Platforms: The predictive model can become a module in a manufacturing execution system (MES) or a digital twin of the SMT line, enabling real-time, lot-specific optimization and what-if analysis.
New Material Systems: Applying the framework to novel solder materials (e.g., low-temperature solders, sintered silver pastes) whose self-alignment dynamics are not well-characterized.
Enhanced Models: Transitioning from RFR to more advanced models like Gradient Boosting or physics-informed neural networks (PINNs) that can incorporate known physical constraints directly into the learning process, potentially improving performance with less data.
Closed-Loop Real-Time Control: The ultimate goal is a fully adaptive system where post-reflow measurement from one board directly updates the placement parameters for the next board, creating a self-correcting production line.

9. References

Lau, J. H. (Ed.). (2016). Fan-Out Wafer-Level Packaging. Springer. (For context on advanced packaging challenges).
Racz, L. M., & Szekely, J. (1993). An analysis of the self-alignment mechanism in surface mount technology. Journal of Electronic Packaging, 115(1), 22-28. (Seminal work on self-alignment physics).
Lv, Y., et al. (2022). Machine learning in surface mount technology and microelectronics packaging: A survey. IEEE Transactions on Components, Packaging and Manufacturing Technology, 12(5), 789-802. (Cited in the PDF; provides the landscape of ML in SMT).
Breiman, L. (2001). Random Forests. Machine Learning, 45(1), 5-32. (Foundational paper on the Random Forest algorithm).
SEMI Standard SEMI-AU1. (2023). Guide for Advanced Process Control (APC) Framework for Semiconductor Manufacturing. SEMI. (For industrial robustness and control framework standards).
Isola, P., Zhu, J.-Y., Zhou, T., & Efros, A. A. (2017). Image-to-Image Translation with Conditional Adversarial Networks. CVPR. (CycleGAN paper, referenced as an example of a powerful, data-driven transformation model conceptually analogous to the "inversion" performed in this SMT optimization).
