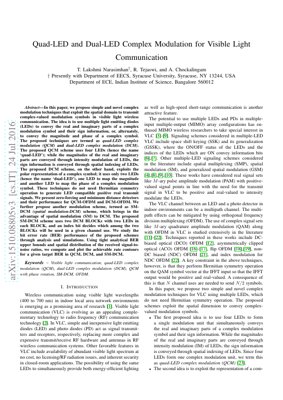

Quad-LED and Dual-LED Complex Modulation for Visible Light Communication

Table of Contents

1. Introduction & Overview

Visible Light Communication (VLC) leverages Light Emitting Diodes (LEDs) for dual-purpose illumination and data transmission. A key challenge is generating positive, real-valued signals compatible with LED intensity modulation, especially when using complex modulation like QAM with OFDM. Traditional VLC-OFDM techniques (e.g., DCO-OFDM, ACO-OFDM) impose Hermitian symmetry on the frequency-domain symbol vector before the Inverse Fast Fourier Transform (IFFT). This ensures a real-valued time-domain signal but reduces spectral efficiency by half, as $N$ subcarriers carry only $N/2$ complex symbols.

This paper by Narasimhan et al. proposes a paradigm shift: bypassing the Hermitian symmetry constraint by exploiting the spatial domain using multiple LEDs. The core idea is to physically separate the transmission of the components (real/imaginary or magnitude/phase) of a complex symbol across different LEDs. This work introduces three novel schemes: Quad-LED Complex Modulation (QCM), Dual-LED Complex Modulation (DCM), and Spatial Modulation DCM (SM-DCM).

2. Proposed Modulation Schemes

2.1 Quad-LED Complex Modulation (QCM)

QCM uses four LEDs to transmit one complex symbol $s = s_I + j s_Q$.

• Magnitude & Sign Separation: The absolute values $|s_I|$ and $|s_Q|$ are conveyed through the intensity (optical power) of two dedicated LEDs.
• Spatial Indexing for Sign: The signs of $s_I$ and $s_Q$ are conveyed by activating a specific pair of LEDs from the set of four. For example, one specific LED pair activation might represent $(+ , +)$, another $(+ , -)$, etc.

This decouples amplitude and sign information, allowing the use of simple, always-positive intensity modulation for the magnitude-carrying LEDs.

2.2 Dual-LED Complex Modulation (DCM)

DCM is a more spectral-efficient scheme using only two LEDs. It exploits the polar representation of a complex symbol $s = r e^{j\theta}$.

• LED 1 (Magnitude): Transmits the magnitude $r$ via intensity modulation.
• LED 2 (Phase): Transmits the phase $\theta$ via intensity modulation. This requires mapping the phase value $\theta \in [0, 2\pi)$ to a positive intensity level, e.g., using $\cos(\theta)$ or a dedicated mapping function.

DCM achieves the same spectral efficiency as a conventional complex modulation scheme without Hermitian symmetry overhead.

2.3 Spatial Modulation DCM (SM-DCM)

SM-DCM integrates the concept of Spatial Modulation (SM) with DCM to enhance data rate or robustness.

• Setup: Two DCM blocks are used, each containing two LEDs (total 4 LEDs).
• Operation: An additional "index bit" selects which of the two DCM blocks is active in a given channel use. The active block then transmits a complex symbol using the standard DCM principle.

This adds one extra bit per channel use (spatial bit) compared to basic DCM, increasing the data rate.

3. Technical Details & System Model

3.1 Mathematical Formulation

The received signal vector $\mathbf{y}$ for a system with $N_t$ LEDs and $N_r$ photo-diodes (PDs) is: $$\mathbf{y} = \mathbf{H} \mathbf{x} + \mathbf{n}$$ where $\mathbf{H}$ is the $N_r \times N_t$ VLC channel matrix (positive, real-valued due to intensity modulation/direct detection), $\mathbf{x}$ is the $N_t \times 1$ transmitted intensity vector (non-negative), and $\mathbf{n}$ is additive white Gaussian noise.

For DCM transmitting symbol $s=r e^{j\theta}$, with LEDs 1 and 2 assigned to magnitude and phase respectively, the transmit vector could be: $$\mathbf{x} = \begin{bmatrix} r \\ f(\theta) \end{bmatrix}$$ where $f(\cdot)$ is a function mapping phase to a positive intensity, e.g., $f(\theta) = \alpha (1+\cos(\theta))$ with $\alpha$ ensuring non-negativity.

3.2 Detector Design

The paper proposes two detectors for QCM/DCM-OFDM systems:

1. Zero-Forcing (ZF) Detector: A linear detector that inverts the channel: $\hat{\mathbf{s}} = \mathbf{H}^{\dagger} \mathbf{y}$, where $\dagger$ denotes the pseudo-inverse. Simple but may amplify noise.
2. Minimum Distance (MD) Detector: A non-linear, optimal detector (in ML sense for AWGN) that finds the transmitted symbol vector that minimizes the Euclidean distance: $$\hat{\mathbf{x}} = \arg\min_{\mathbf{x} \in \mathcal{X}} \| \mathbf{y} - \mathbf{H}\mathbf{x} \|^2$$ where $\mathcal{X}$ is the set of all possible transmitted intensity vectors for the modulation scheme.

4. Performance Analysis & Results

4.1 BER Performance & Bounds

The paper derives tight analytical upper bounds for the Bit Error Rate (BER) of QCM, DCM, and SM-DCM schemes. Simulations validate these bounds. Key findings:

• DCM outperforms QCM for the same spectral efficiency because it uses energy more efficiently by dedicating LEDs to magnitude and phase directly, rather than separating real/imaginary parts and their signs.
• SM-DCM provides a favorable trade-off, offering a higher data rate than DCM (due to the spatial index bit) while maintaining better BER performance than QCM at comparable rates.
• The MD detector significantly outperforms the ZF detector, especially in lower SNR regimes or ill-conditioned MIMO channels.

4.2 Achievable Rate Contours

A significant contribution is the analysis of achievable rate contours for a target BER. Instead of just peak capacity, the authors plot the spatial distribution of achievable rates (bits/channel use) across a room layout for a fixed target BER (e.g., $10^{-3}$).

• Visualization: These contours graphically show areas in a room where a certain modulation scheme (QCM, DCM, SM-DCM) can reliably achieve a specific data rate.
• Insight: DCM and SM-DCM generally show larger high-rate regions compared to QCM, demonstrating their superior performance and coverage.

This practical analysis tool is crucial for VLC system design and deployment planning.

5. Analyst's Perspective: Core Insight & Critique

Core Insight: Narasimhan et al.'s work is a clever, hardware-aware hack that fundamentally rethinks the "complex-to-real" signal generation problem in VLC. Instead of solving it in the digital domain with Hermitian symmetry—a method akin to the cyclic consistency loss in CycleGAN (Zhu et al., 2017) which enforces structural constraints in the data—they offload it to the physical layer's spatial diversity. This is reminiscent of how RF Massive MIMO exploits spatial degrees of freedom for multiplexing, but here it's used for constellation decomposition. The true innovation is recognizing that an LED array's primary role in VLC isn't just MIMO multiplexing; it can be a constellation renderer.

Logical Flow: The paper's logic is impeccable: 1) Identify the bottleneck (Hermitian symmetry overhead). 2) Propose a spatial decomposition principle (QCM). 3) Optimize for efficiency (DCM). 4) Integrate an additional multiplexing dimension (SM-DCM). 5) Validate with rigorous analysis (BER bounds, rate contours). This is a textbook example of incremental but meaningful research progression.

Strengths & Flaws: Strengths: The conceptual elegance is high. DCM's spectral efficiency recovery is its killer feature. The rate contour analysis is a standout, moving beyond theoretical SNR/BER curves to practical deployment metrics, aligning with trends in IEEE and ITU-R reports on VLC system planning. The avoidance of DC bias or clipping (common in DCO/ACO-OFDM) simplifies transmitter design. Flaws: The elephant in the room is channel state information (CSI) requirement. The performance of MD and even ZF detectors degrades severely with imperfect CSI, a major challenge in practical, dynamic VLC environments with user mobility and shadowing. The paper's analysis assumes perfect CSI. Furthermore, the phase-to-intensity mapping $f(\theta)$ in DCM is non-linear and may be sensitive to LED non-linearity. Compared to more recent works on index modulation or neural network-based receivers for VLC (as seen in later arXiv submissions), the signal processing here is relatively conventional.

Actionable Insights: For industry practitioners: 1. Prioritize DCM over QCM for new designs; the 2x LED efficiency gain is substantial. 2. Use the rate contour methodology from this paper for real-world VLC hotspot planning (e.g., in offices, museums). 3. Treat the CSI assumption as the critical risk. Invest in robust channel estimation techniques or consider differential encoding variants of DCM to mitigate this. 4. Explore hybrid schemes: Use DCM for static, high-rate backbone links and fall back to more robust, simpler modulations (like OOK) for mobile users. The work provides a powerful tool, but its integration into a complete, robust system requires addressing the practical channel estimation challenge head-on.

6. Analysis Framework & Case Example

Framework: Performance Comparison Under Imperfect CSI

Scenario: Evaluate QCM, DCM, and SM-DCM in a 4m x 4m x 3m room with 4 ceiling-mounted LEDs (arranged in a square) and a single PD receiver at desk height. The target is to maintain a minimum rate of 2 bits/channel use at a BER of $10^{-3}$.

Steps:

1. Channel Modeling: Use a classical VLC channel model: $h = \frac{(m+1)A}{2\pi d^2} \cos^m(\phi) T_s(\psi) g(\psi) \cos(\psi)$ for LOS, where $m$ is Lambertian order, $d$ distance, $\phi$ irradiance angle, $\psi$ incidence angle, $T_s$, $g$ optical filter and concentrator gains.
2. CSI Imperfection: Model estimated channel $\hat{\mathbf{H}} = \mathbf{H} + \mathbf{E}$, where $\mathbf{E}$ is an error matrix with elements i.i.d. Gaussian, variance proportional to SNR$^{-1}$.
3. Analysis:
   • Calculate the theoretical BER upper bound (from the paper) for perfect CSI at various SNRs and positions.
   • Simulate the MD detector using the imperfect $\hat{\mathbf{H}}$ and observe the SNR penalty required to maintain the target BER.
   • Plot the shrinking of the achievable rate contours (for target BER) when CSI error variance increases from 0% to 10%.
4. Expected Insight: SM-DCM, with its inherent spatial selectivity, may show more robustness to channel estimation errors in certain positions compared to DCM, as the index detection might be less sensitive to small channel magnitude errors than the precise amplitude/phase detection of DCM.

This case extends the paper's perfect-CSI analysis to a critical practical dimension.

7. Future Applications & Directions

The principles of QCM/DCM open several promising avenues:

• Li-Fi in Industrial IoT: The robustness and high efficiency of DCM make it suitable for high-data-rate, short-range links in industrial settings (e.g., machine-to-machine communication in automated factories) where RF interference is a concern and positions are relatively fixed (mitigating CSI issues).
• Underwater VLC: For underwater communications where blue-green LEDs are used, the simple transmitter structure of DCM could be advantageous. Research from institutions like the Woods Hole Oceanographic Institution highlights the need for efficient modulation in harsh underwater channels.
• Integration with Advanced Receivers: Future work should pair DCM with deep learning-based receivers (e.g., CNN or Transformer-based detectors) that can jointly perform channel estimation and symbol detection, potentially overcoming the perfect CSI limitation. This aligns with trends in arXiv submissions on machine learning for communications.
• Hybrid RF/VLC Systems: DCM could serve as the ultra-high-speed, short-range component in a heterogeneous network, with RF providing coverage and mobility support. The rate contour analysis can directly inform such hybrid network planning.
• Standardization: The efficiency gains of DCM warrant consideration for inclusion in future VLC standards by bodies like IEEE 802.15.7. Its elimination of Hermitian symmetry is a tangible advantage over existing OFDM-based PHY layers.

8. References

1. Narasimhan, T. L., Tejaswi, R., & Chockalingam, A. (2016). Quad-LED and Dual-LED Complex Modulation for Visible Light Communication. arXiv:1510.08805v3 [cs.IT].
2. Zhu, J.-Y., Park, T., Isola, P., & Efros, A. A. (2017). Unpaired Image-to-Image Translation using Cycle-Consistent Adversarial Networks. Proceedings of the IEEE International Conference on Computer Vision (ICCV).
3. IEEE 802.15.7-2018: Standard for Local and Metropolitan Area Networks--Part 15.7: Short-Range Optical Wireless Communications.
4. ITU-R Reports on Visible Light Communication Systems.
5. Woods Hole Oceanographic Institution. (n.d.). Optical Communications. Retrieved from https://www.whoi.edu.
6. Mesleh, R., et al. (2008). Spatial Modulation. IEEE Transactions on Vehicular Technology.
7. Armstrong, J. (2009). OFDM for Optical Communications. Journal of Lightwave Technology.
