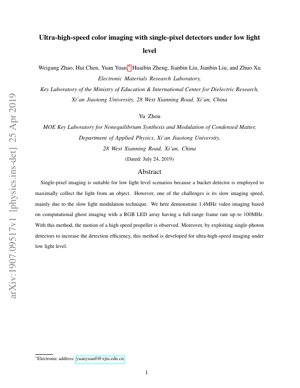

Ultra-High-Speed Color Imaging with Single-Pixel Detectors Under Low Light Level

1. Introduction

Ultra-high-speed imaging under low-light conditions is a critical challenge in fields like biophotonics (e.g., observing cellular dynamics) and microfluidics. Conventional pixelated sensors like CCDs and CMOS face a fundamental trade-off between frame rate and sensitivity. High-speed variants require intense illumination, which can damage delicate samples. This paper presents a breakthrough method using single-pixel imaging (SPI) combined with a fast RGB LED array to achieve video imaging at 1.4 MHz frame rates under low-light conditions, circumventing the limitations of traditional sensors.

2. Methodology & System Design

The core innovation lies in marrying computational ghost imaging principles with a high-speed modulation source.

2.1 Core Principle of Single-Pixel Imaging

SPI does not spatially resolve an image directly. Instead, it uses a sequence of known, structured light patterns (e.g., from an LED array) to illuminate an object. A single, highly sensitive "bucket" detector (like a photomultiplier tube or single-photon avalanche diode) collects the total reflected or transmitted light intensity for each pattern. The image is computationally reconstructed from this series of scalar measurements and the known patterns.

2.2 The RGB LED Array Modulator

The key enabling hardware is a custom RGB LED array capable of generating structured illumination patterns at a full-range frame rate up to 100 MHz. This replaces slower spatial light modulators (SLMs) like digital micromirror devices (DMDs), which are typically limited to tens of kHz. The fast switching of LEDs allows for rapid pattern projection, directly enabling the megahertz-scale imaging speed.

2.3 Signal Detection & Reconstruction

For low-light operation, a single-photon detector (SPD) is used as the bucket detector, offering near-ideal detection efficiency. The reconstruction algorithm, based on computational ghost imaging, solves for the object's reflectivity/transmissivity matrix $O(x, y)$ given the series of measurements $B_i$ and known pattern matrices $P_i(x, y)$: $B_i = \sum_{x,y} P_i(x, y) \cdot O(x, y) + \text{noise}$. Techniques like compressive sensing can be applied if the number of measurements is less than the number of pixels.

3. Experimental Setup & Results

3.1 High-Speed Propeller Imaging

The system's capability was demonstrated by imaging a high-speed rotating propeller. The 1.4 MHz frame rate successfully captured the propeller's motion without motion blur, which would be impossible with conventional high-speed cameras under equivalent low-light scenarios. This serves as a direct, tangible validation of the system's ultra-high-speed imaging performance.

Chart Description (Implied): A time-series sequence of reconstructed images showing the clear, discrete positions of the propeller blades across successive microsecond-scale frames, proving the effective temporal resolution.

3.2 Low-Light Performance with Single-Photon Detectors

By integrating single-photon detectors, the system's sensitivity was drastically enhanced, enabling imaging at photon-starved levels. The paper contrasts this with the Photonic Time Stretch (PTS) technique, noting that while PTS also uses a single-pixel detector, it does not inherently improve sensitivity as it merely encodes spatial information into time. The ghost imaging approach, with its bucket detector, architecturally maximizes light collection.

Performance Summary

Frame Rate: 1.4 MHz (Demonstrated Video)
Modulation Rate: Up to 100 MHz (LED Array Potential)
Detection: Single-Photon Sensitivity Enabled
Color Capability: RGB LED-based Color Imaging

4. Technical Analysis & Mathematical Framework

The image reconstruction is fundamentally an inverse problem. For $N$ measurements and an image of resolution $M \times M$ pixels, the process can be formulated as solving $\mathbf{b} = \mathbf{A}\mathbf{o} + \mathbf{n}$, where:

$\mathbf{b}$ is the $N \times 1$ vector of bucket detector measurements.
$\mathbf{o}$ is the $M^2 \times 1$ vector representing the flattened image.
$\mathbf{A}$ is the $N \times M^2$ measurement matrix, each row being a flattened illumination pattern.
$\mathbf{n}$ represents noise.

With $N << M^2$, compressive sensing algorithms (e.g., based on $L_1$-norm minimization) are used: $\hat{\mathbf{o}} = \arg\min_{\mathbf{o}} \|\mathbf{b} - \mathbf{A}\mathbf{o}\|_2^2 + \lambda \|\Psi\mathbf{o}\|_1$, where $\Psi$ is a sparsifying transform (e.g., wavelet) and $\lambda$ a regularization parameter. The use of an RGB array extends this to color by performing independent measurements/modulations for red, green, and blue channels.

5. Analysis Framework: Core Insight & Critique

Core Insight: This work isn't just an incremental speed boost; it's a strategic end-run around the semiconductor physics limiting CMOS/CCD sensors. By decoupling spatial resolution (handled computationally) from light collection (handled by a single, optimal detector), the authors exploit the one area where detectors can be both fast and sensitive. The real genius is the choice of an RGB LED array as the spatial light modulator. Unlike the DMDs used in landmark single-pixel camera work (like that from Rice University), LEDs can switch at nanosecond speeds, directly attacking the traditional bottleneck of SPI. This mirrors the paradigm shift seen in computational imaging elsewhere, such as in Neural Radiance Fields (NeRF), where scene representation is moved from direct capture to a learned, model-based reconstruction.

Logical Flow & Strengths: The logic is impeccable: 1) Identify the speed-sensitivity trade-off as the core problem. 2) Choose SPI for its architectural sensitivity advantage. 3) Identify the modulator speed as the new bottleneck. 4) Replace the slow modulator (DMD) with a fast one (LED array). 5) Validate with a classic high-speed target (propeller). The strengths are clear: Megahertz-scale frame rates under low light are unprecedented. The use of color RGB LEDs is a pragmatic and effective solution for multi-spectral imaging, more straightforward than spectral scanning approaches.

Flaws & Critical Gaps: However, the paper glosses over significant practical hurdles. First, the requirement for known, repetitive patterns means it's currently unsuitable for unpredictable, non-stationary scenes unless paired with adaptive pattern generation—a major computational challenge at these speeds. Second, while the bucket detector is sensitive, the total light budget is still limited by the source. Imaging a faint, fast-moving object at a distance remains problematic. Third, the reconstruction algorithm's latency and computational cost for real-time, high-resolution video at 1.4 MHz are not addressed. This isn't a "camera" yet; it's a high-speed imaging system with likely offline processing. Compared to the robustness of event-based cameras (inspired by biological retinas) for high-speed tracking, this SPI method is more complex and scenario-dependent.

Actionable Insights: For researchers and engineers, the takeaway is twofold. 1. Modulator Innovation is Key: The future of high-speed SPI lies in developing even faster, higher-resolution programmable light sources (e.g., micro-LED arrays). 2. Algorithm-Hardware Co-design is Non-Negotiable: To move beyond lab demonstrations, investment must flow into creating dedicated ASICs or FPGA pipelines that can perform compressive sensing reconstruction in real-time, akin to the hardware evolution of deep learning. The field should look towards machine learning-accelerated reconstruction, similar to how AI transformed MRI image reconstruction, to tackle the computational bottleneck. This work is a brilliant proof-of-concept that redefines the possible, but the path to a commercial or widely deployable instrument requires solving the systems engineering challenges it so clearly exposes.

6. Future Applications & Development Directions

Biomedical Imaging: Real-time observation of intracellular transport, blood flow in capillaries, or neural activity in vivo without phototoxic illumination.
Industrial Inspection: Monitoring high-speed manufacturing processes (e.g., microfabrication, printing) or analyzing material fractures under stress in low-light test environments.
Scientific Sensing: Imaging in spectral ranges where fast, sensitive pixelated arrays are expensive or unavailable (e.g., short-wave infrared, THz).
Development Directions:
1. Integration with machine learning for adaptive pattern generation and faster, more robust image reconstruction.
2. Development of higher-density and faster micro-LED arrays to improve spatial resolution and pattern complexity.
3. Miniaturization of the system for portable or endoscopic applications.
4. Exploration of quantum-enhanced protocols using entangled photon pairs to surpass classical sensitivity limits in low-light high-speed imaging.

7. References

Zhao, W., Chen, H., Yuan, Y., et al. "Ultra-high-speed color imaging with single-pixel detectors under low light level." arXiv:1907.09517 (2019).
Duarte, M. F., et al. "Single-pixel imaging via compressive sampling." IEEE Signal Processing Magazine 25.2 (2008): 83-91. (Seminal Rice University single-pixel camera work).
Boyd, S., et al. "Distributed optimization and statistical learning via the alternating direction method of multipliers." Foundations and Trends® in Machine learning 3.1 (2011): 1-122. (For reconstruction algorithms).
Mildenhall, B., et al. "NeRF: Representing Scenes as Neural Radiance Fields for View Synthesis." ECCV (2020). (Example of advanced computational imaging).
Lichtman, J. W., & Conchello, J. A. "Fluorescence microscopy." Nature methods 2.12 (2005): 910-919. (Context on low-light biological imaging challenges).
Hamamatsu Photonics. "Single Photon Avalanche Diode (SPAD) Technology." (Commercial source for single-photon detectors).
